PRE-INSULATED SOLAR PIPE
Pre-Insulated Solar Pipe Details

Flexible metal hoses manufactured from stainless steel AISI 316L, material that are used to transport the hot and cold water between solar thermal panels and hot water storage tank. AT-flex solar hoses are installed to system for solar panel water connection to the other heating items.

Solar hoses advantages are,
-Low heating-loss with its EPDM Rubber insulation,
-Real-time feedback transfer with its sensor cable
-Easy installation with its flexible body and screwed fittings,
-Low cost expense for installation,
-Easy and quick installation,

Optional
solar hoses can be braided with special polyamide (PA6.6), this special braiding protects rubbers and hose from external impact.

Application Area:
-Heating system
-Solar systems

Pre-Insulated Solar Pipe Features

  • Hose: AISI 316L Stainless steel
  • Insulation: Rubber (13mm or 19 mm)
  • Braid: Special polyamide PA 6.6(optional)
  • Fittings: Carbon steel or Stainless steel
  • Connection: Racords
  • Diameter Nominal: Hose Diameter: DN12-DN32
  • Connection: 1/2”-1 ½”
  • Max. Working pressure: 16 Bars
  • Working Temperature: -40ºC to 150ºC

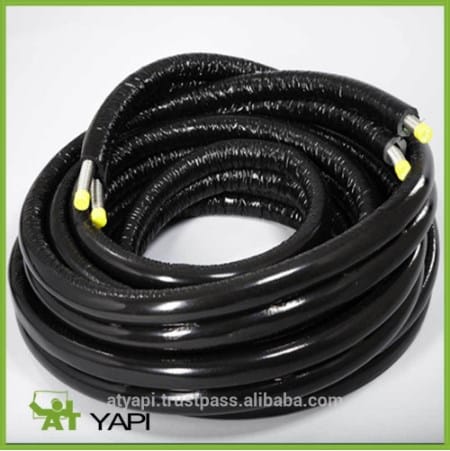

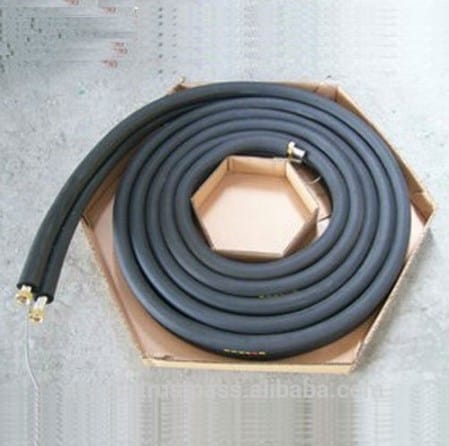

Pre-Insulated Solar Pipe Gallery
