ALUMINIUM FOIL POLYETHYLENE PIPE INSULATION

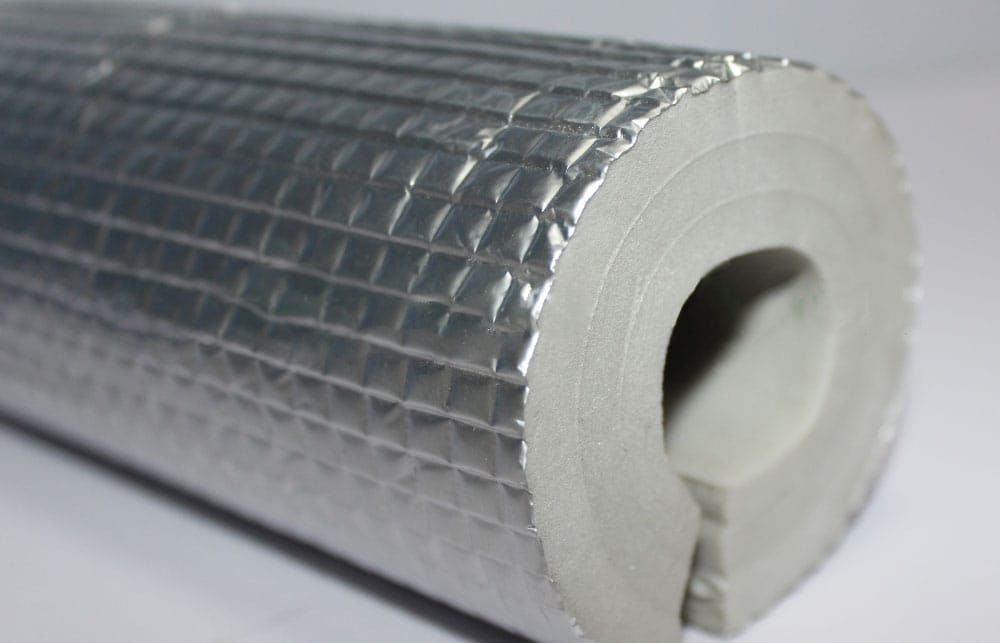

Aluminium Foil Polyethylene Pipe Insulation Details

The Aluminium laminate is heat bonded at the manufacturing level and is simply impossible to tear it off the Polyethylene Foam Additionally, the aluminuim laminate provides

Protection against weather elements as well as physical abuse and mishandling during transportation and installation. The Aluminum acts as an extra layer of protection against water vapor permeability, particularly in a humidity intense climate such as the gulf region.

High quality foam polyethylene with very slight closed cell structure
Density is 25-38 kg/m3. Exerted at temperature between -80 °C and 95 °C
Featuring latest technology, recyclable and foamed without H(C)FC
Due to its excel physical features without hesitating preferred at important projects by experts
Retained insulation value throughout long life of installation λ (FRZ) ≤ 0,040 W/mK, λ (ZZ) ≤ 0,050 W/mK (Δt=40°C) DIN 52613.
Self extinguishing and assured physical values through quality control studies including B1 DIN 4102 test methods which are monitored continuous by independence German Institutes. (valid only for FRZ products)
Protection along external surface through closed cell structure Excellent water vapour resistance, μ ≥ 3.500 DIN 52615
Outstanding saving energy and condensation control
Neutral, no odour and no emission of poisonous gasses
No water absorption, putrefaction or mildew forming
Absorption of vibration and sound caused by pressure
No affectation by solvent and industrial lubricant proved by the trials with ASTM 543-56 T test methods
Good flexibility, easily cut, quick and easy installation in applications of wall and ceiling crossings and bends turning
With wide product range effective, economical solution for all insulation applications
The ATYAPI Calculation Program helps you choose the right diameter and wall thickness

Recognised all over the world. ATYAPI PE Insulation pipe is produced in wall thicknesses of 6 mm, 10 mm, 15 mm, 20 mm and 30 mm. For special orders depending on order quantities different wall thicknesses can be produced.

Aluminium Foil Polyethylene Pipe Insulation Usage

  • copper
  • iron and plastic pipe insulations
  • central heating
  • solar energy
  • radiator
  • cooling systems
